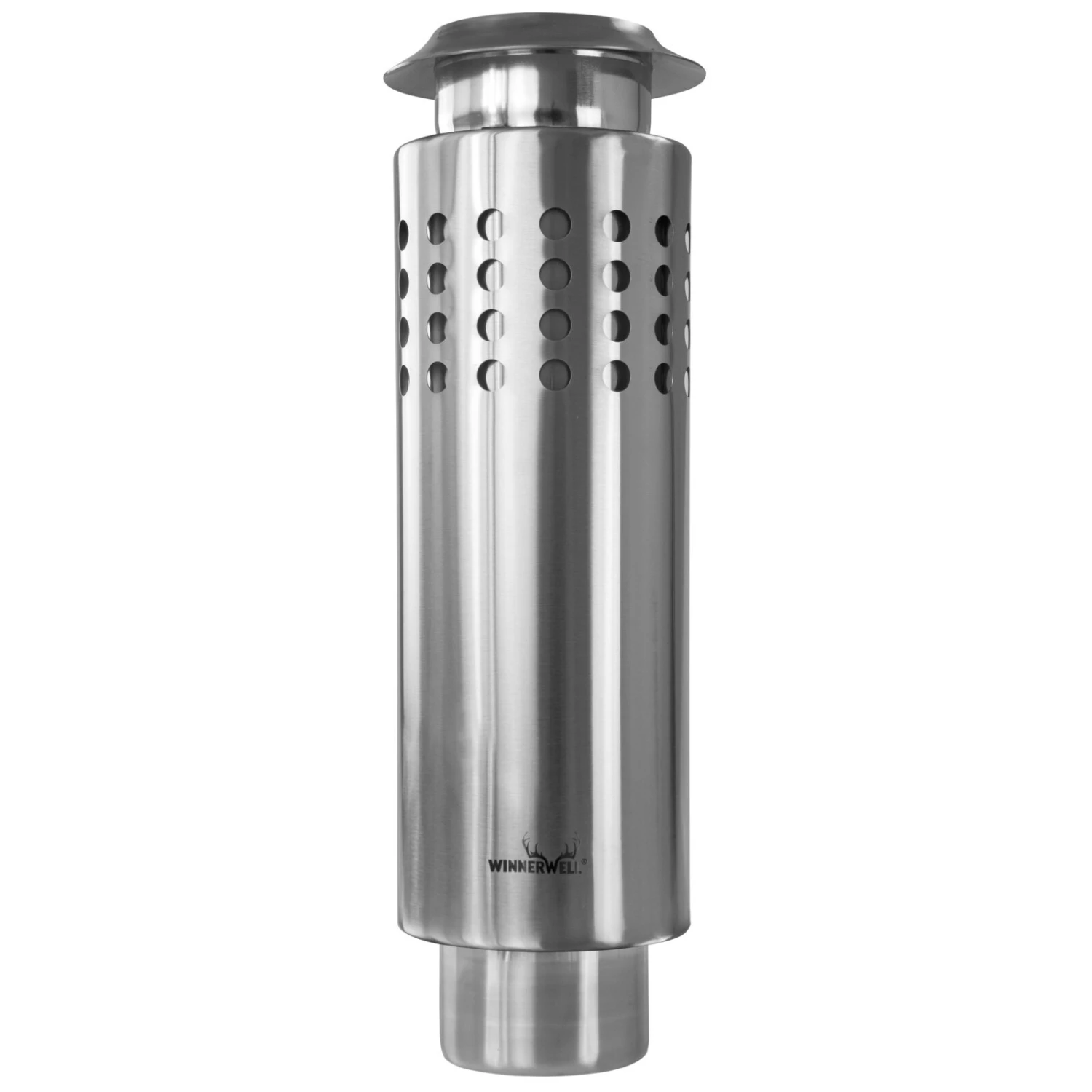

Winnerwell Heat Protector Chimney G2 3.5”

Winnerwell Heat Protector Chimney G2 3.5″ is strongly recommended where your chimney pipe exits the stove jack in your tent or shelter. The Winnerwell 3.5” Heat Protector Chimney Section is compatible with the Woodlander and Nomad series L-sized wood burning stoves. The double wall design prevents the hot flue pipe from directly contacting your exit point. The exterior diameter is 4.7 inches and is designed to fit perfectly with Winnerwell Silicone Flashing Kit.

Plug the Winnerwell Heat Protector Chimney into stove pipe at the position going through stove jack or flashing kit, one or more sections of Heat Protector Chimney will be needed based on usage.

If needed, you can purchase Short Pipe 3.5” (SKU 910366) separately and use it to adjust the height position of the Heat Protector.

Warning:

1. If using the Heat Protector Chimney G2 3.5” only without the use of Flashing Kit, there will be potential risk of melting or burning the tents.

2. The Heat Protector Chimney G2 3.5” must be installed on the third or higher than the third section chimney pipe of the stove.

Specifications

Materials	AISI304 Stainless Steel
Pipe length	430mm
Inner pipe diameter	89mm
Weight	1.57kg

How to Avoid Surface Rust

AISI301 material will not corrode, however superficial surface rust can be avoided with proper care and maintenance. Keep surfaces clean by scrubbing away any surface rust with a sponge.
