Winnerwell Triple-wall Heat Protector Chimney 3.5”

Heat Protector Chimney

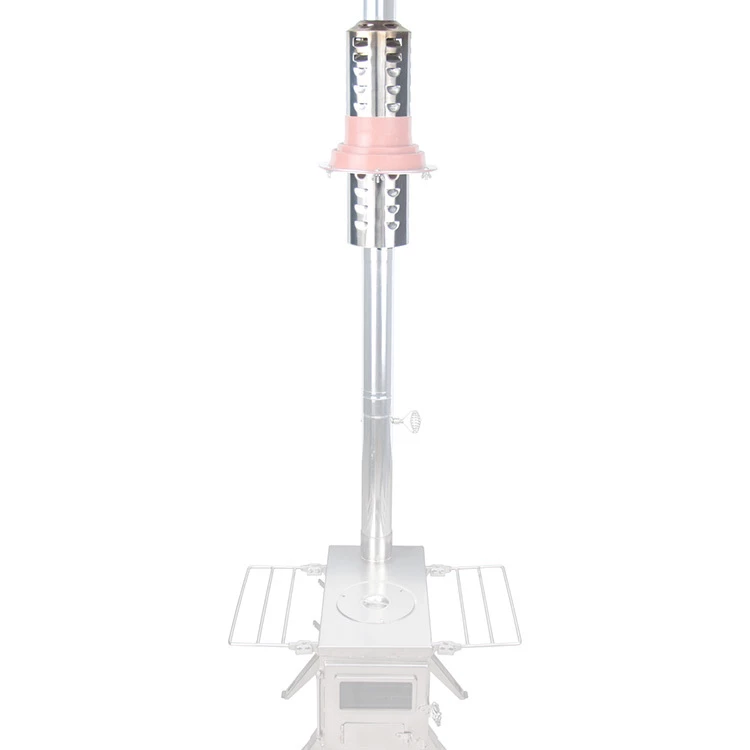

The Winnerwell Triple-wall Heat Protector Chimney 3.5″ is strongly recommended where your chimney pipe exits the stove jack in your tent or shelter. The Winnerwell 3.5” Triple-wall Heat Protector Pipe Section is compatible with the Woodlander and Nomad series L-sized wood burning stoves.

The triple wall design prevents the hot flue pipe from directly contacting your exit point. The exterior diameter is 150mm / 5.9 inches and is designed to fit perfectly with Winnerwell Silicone Flashing Kit Large (sold separately).

Warning:

1. If using the Triple-wall Heat Protector Chimney 2.5” only without the use of Flashing Kit Large, there will be potential risk of melting or burning the tents.
2. The Tripe-wall heat Protector Chimney 2.5” must be installed on the third or higher than the third section chimney pipe of the stove.

Features

• Compatible with the Woodlander and Nomad series L-sized wood burning stoves
• Made from AISI304 stainless steel
• Prevents the hot flue pipe from directly contacting the stove jack
• Designed to pair with the Winnerwell silicone Flashing Kit (sold separately)

Specifications

Materials	AISI304 Stainless Steel
Pipe length	400mm
Inner pipe diameter	89mm
Weight	1.28kg

How to Avoid Surface Rust

AISI301 material will not corrode, however superficial surface rust can be avoided with proper care and maintenance. Keep surfaces clean by scrubbing away any surface rust with a sponge.

Optional Accessories (Sold Separately)

• Winnerwell Flashing Kit Large
